meCash Webhook Events

meCash supports webhook notifications for key events in your payout and virtual workflows. You can monitor these events in real time via the Webhook Logs section on your Dashboard.

In this section, we'll consider the following:

1. Managing Webhooks

2. Event Types

3. Transaction Details

4. Webhook Payloads for Virtual accounts, Fiat transactions, and Ramp Payouts (i.e Off-Ramp and Crypto).

Viewing Webhook Events

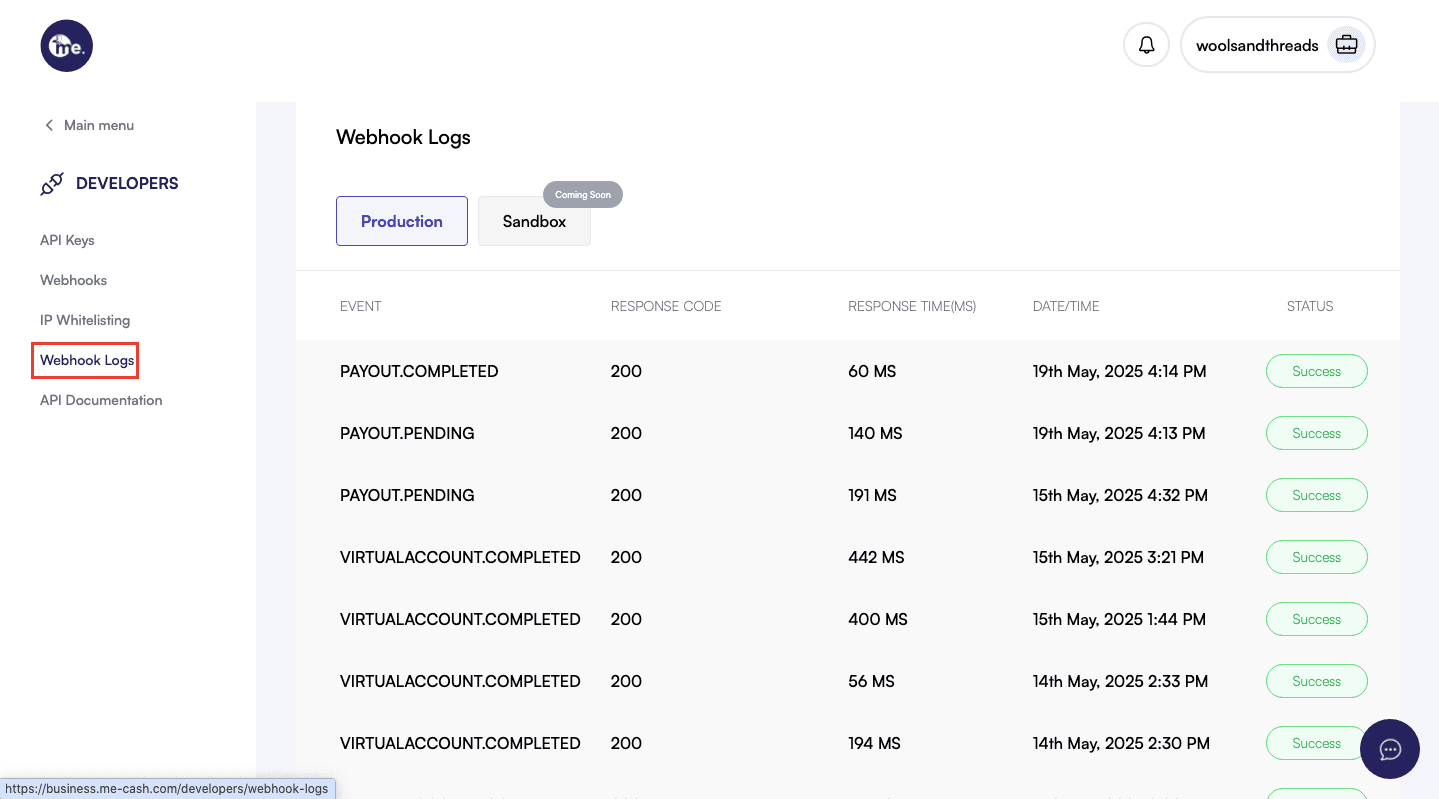

To view the events in meCash Webhook Logs:

1. Navigate to the Developers section on your meCash Dashboard.

2. On the left-side of the screen, click on the Webhook Logs tab.

Each entry includes:

• Event: The triggered event type (e.g., transaction.success, transaction.failed, customer.created). This tells you what action in meCash initiated the webhook.
• Response Code: The HTTP status code received from your webhook server. A 200 OK indicates your server successfully processed the webhook, while a 500 Internal Server Error or other error codes point to an issue on your server's side.
• Response Time: The duration of the response in milliseconds. This helps you monitor the performance of your webhook endpoint; longer times might signal potential bottlenecks.
• Date Time: The exact timestamp when the event occurred. This is crucial for tracking and debugging purposes.
• Status: Whether the webhook was successfully sent and delivered. This usually shows "Sent" or "Delivered" if the webhook reached your server.

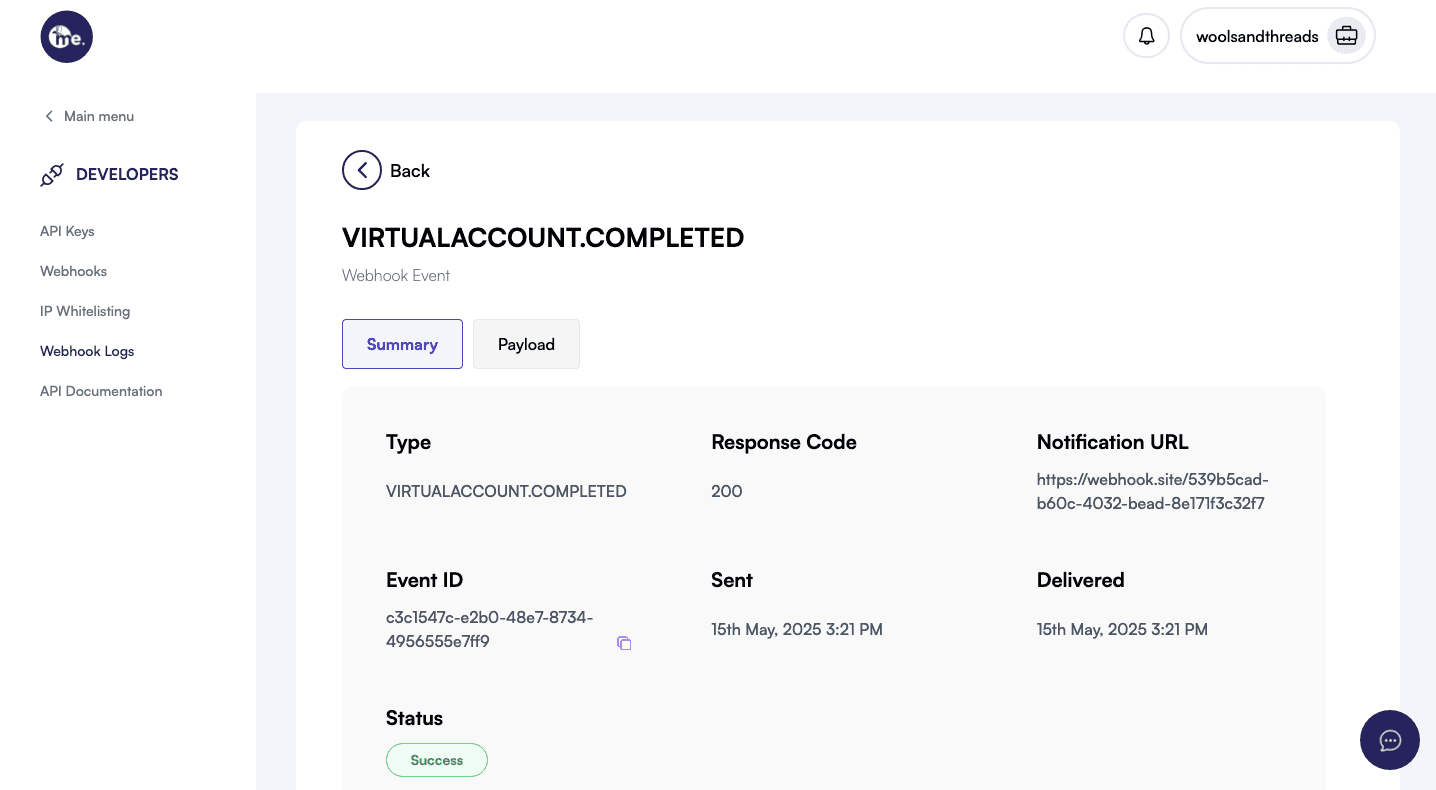

You can view the summary/details and payload of a specific webhook event.

The summary page includes:

• Type: The webhook event type (e.g., collection.completed).
• Response Code: The HTTP response code for the event (e.g., 200, 500).
• Notification URL: The webhook URL configured to receive webhook events. It's essential to confirm this URL is correct and active.
• Event ID: A unique identifier for the specific webhook event. This ID can be helpful when troubleshooting with meCash support.
• Sent: This is the date/time the webhook event was sent.
• Delivered: This is the date/time the webhook event was delivered.
• Status: The status of the webhook event, not the payload (e.g., "Success", "Failed").

Note: This status is independent of the event payload state.

The Payload tab displays the JSON body of the webhook event. Each event type has a different payload structure, containing detailed information about the event.

You can refer to the Webhook Event Payload documentation for specific payload structures.

meCash Event Types

These are the events that meCash will notify you about via the Webhook logs. Each event represents a change in the state of a transaction or virtual account activity.

Collections Events

• collection.completed
  (FUNDING) – Notifies you when funds have been successfully collected (funding of your merchant account).

• collection.failed
  (FUNDING) – Informs you that a collection attempt has failed.i.e An attempt to fund the merchant account failed.

Virtual Account Events

• virtualaccount.completed
  (FUNDING) – Informs you when a virtual account has been successfully funded.

• virtualaccount.failed
  (FUNDING) – Alerts you if an attempt to fund a virtual account has failed.

Fiat Payout Events

• payout.completed
  (SEND) – Notifies you when a payout has been successfully completed from your account to an external recipient.

• payout.failed
  (SEND) – Informs you when a payout attempt has failed.

• payout.pending
  (SEND) – Alerts you that a payout is currently in progress.

Ramp Payout Events

• ramp.payout.completed
  (SEND) – Indicates that an off-chain payout transfer has been successfully completed.

• ramp.payout.failed
  (SEND) – Notifies you that an off-chain payout attempt has failed.

• ramp.payout.pending
  (SEND) – Indicates that an off-chain payout transfer is pending and being processed.

• ramp.payout.refund
  (SEND) – Notifies you that a refund has been processed for a previously initiated payout.

Transaction States

This explains the different possible statuses of a transaction that you might see within the webhook payload:

Transaction Types

The type and category fields in webhook payloads describe the nature of the transaction and how the funds move across financial networks.

Summary of Categories

• OFF_RAMP – Funds are converted from crypto to fiat and paid out to external recipients (like bank transfers in local currency).
• CRYPTOCURRENCY – Transactions remain entirely within the blockchain (no fiat involvement).

Webhook Payload Format

Here are sample JSON payloads that meCash sends to the Webhook Logs when an event is triggered.

{
"event": "collection.completed",
"data": {
"id": "1232d254-c18d-4ec2-xxxxxxxxxxxxx",
"referenceNumber": "E09B8KMBGL6MC",
"amount": 110,
"type": "FUNDING",
"state": "COMPLETED",
"destination": "NGN wallet",
"source": {
  "bankName": "GTBank Plc",
  "accountName": "JESSICA DOE",
  "accountNumber": "00XXXXXXXXX"
},
"created": "2025-04-17T12:29:11.104451302",
"processed": "2025-04-17T12:29:11.104451302"
}
}
